Electric Cranes

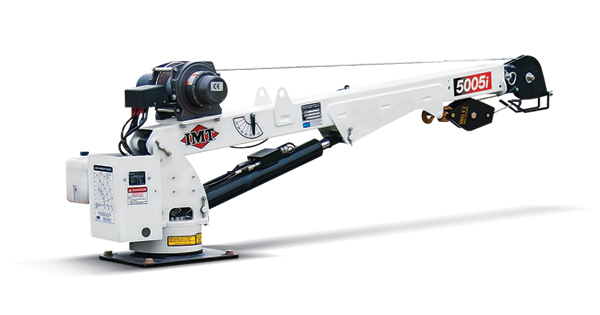

5005i

Confined spaces and complex tasks are no issue with the compact 5005i telescopic crane. This little crane can do the heavy lifting for you with a lifting capacity of 5000 lb (2268 kg) and a maximum horizontal reach of 22′. The 5005i requires minimal mounting space, which means thereā€™s more room for your payload.

Standard features:

  • Planetary winches
  • Non-proportional tethered remote control
  • Electrical operating systems
  • Anti-two-block protection
  • Overload shutdown protection

Find a Distributor Request a Quote

Model5005i (22')
Crane Rating30,000 ft-lb
Crane Weight1,440 lb
Max Lift Capacity5,000 lb
Max. Horizontal Reach22' "

IMT_5005i-6006i_PARTS-1
Download

IMT Full Line Pocket Brochure
Download

IMT Telescopic Crane Quick Reference Guide
Download
