Hydraulic Loaders

42684

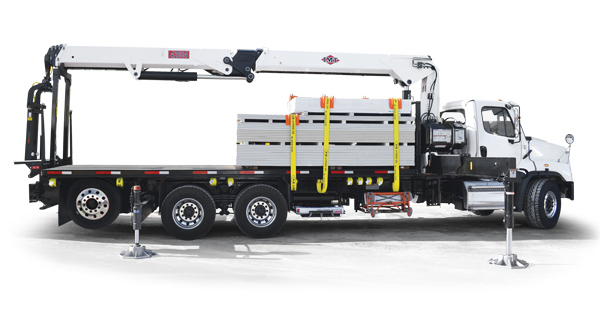

Increase your productivity with the highest lifting hydraulic loader from IMT. The 42684 loader crane can easily lift supplies up to nine stories. Purposeful technology makes our loaders lift more, reach farther, and last longer ā€” so you can stick to your schedule, stay under budget, and move on to the next project.

Standard features:

  • Up to 82′ 10″ (25.25 m) of horizontal reach
  • Radio Remote with InfoCenter
  • Oil Cooler

Optional features:

  • Electronic Vehicle Stability (EVS) System
  • Flashing Stabilizer LED

Find a Distributor Request a Quote

Model42684
Crane Rating305,580 ft-lb
Crane Weight13,201 lb
Max Lift Capacity10,500 lb
Max. Horizontal Reach82' 10 "
Max. Vertical Lift Height94' 5 "

42684_Specs
Download

42684_Parts
Download

IMT Full Line Pocket Brochure
Download

IMT Hydraulic Loader Brochure
Download
