Electric Cranes

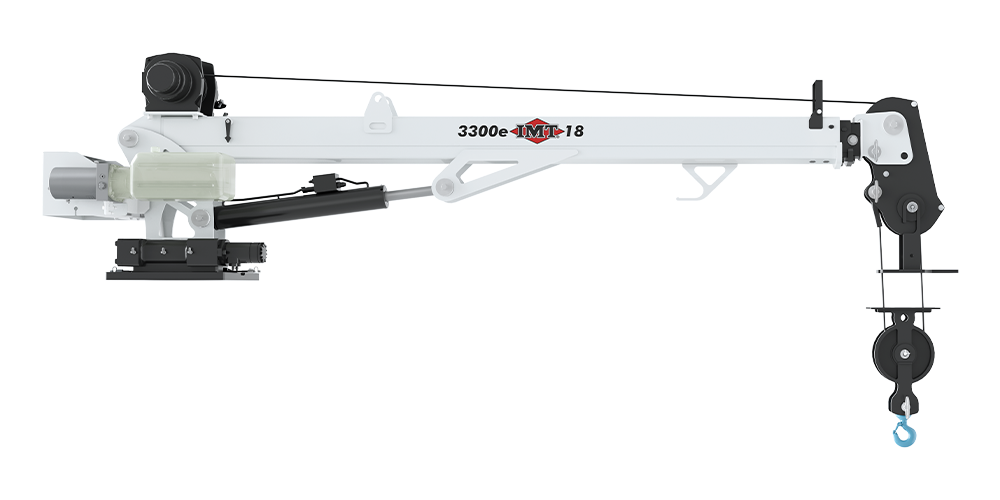

3300e-18

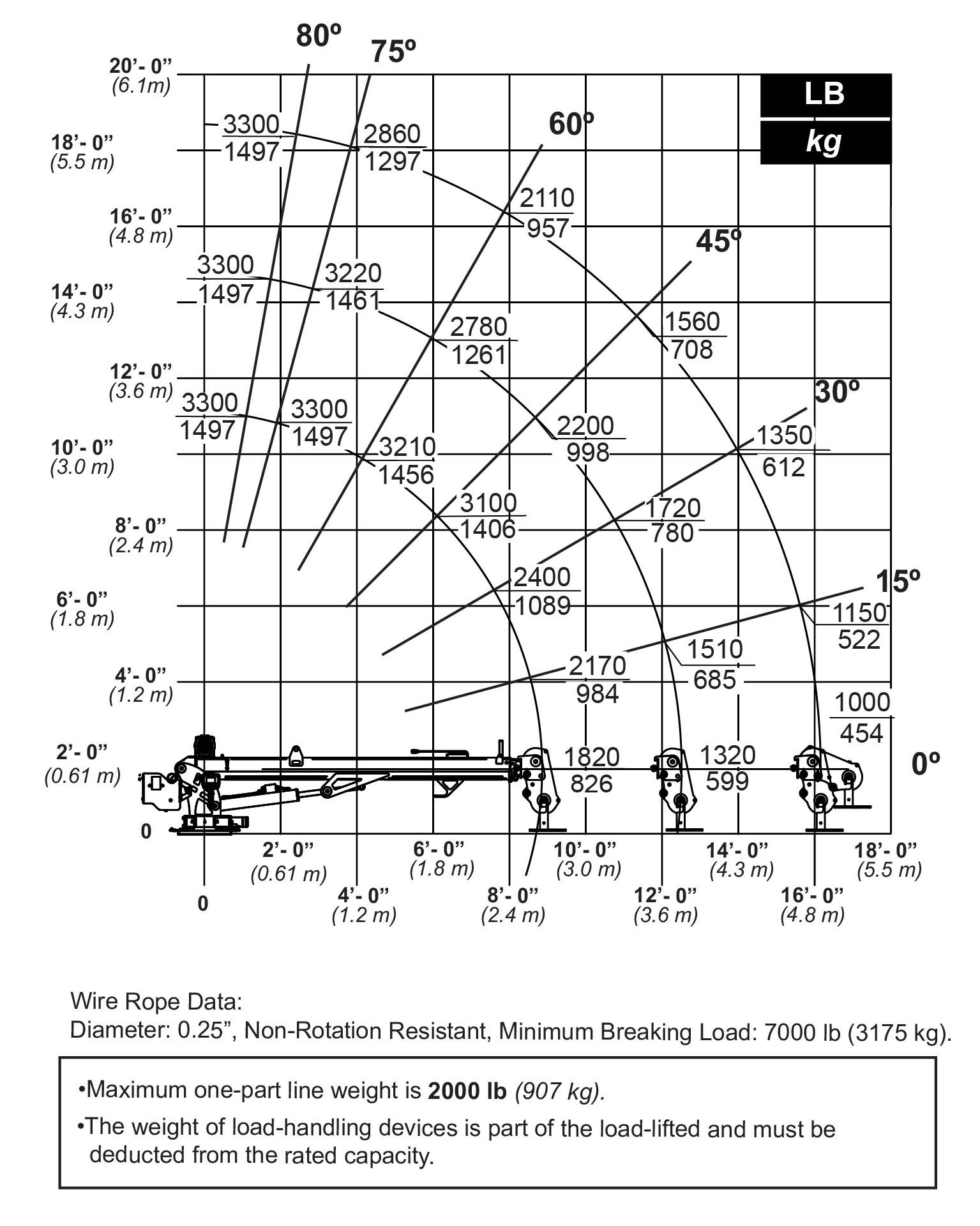

The 3300e-18 leaves more room for payload because of its minimal mounting space. One of the most compact models in our all-new telescopic crane lineup, the 3300e-18 is also simple to service and durably built. It can lift up to 3,300 lb (1,497 kg) and offers up to 17′-1″ (5.2 m) of horizontal boom reach, plus up to 18′-1″ (5.5 m) of vertical boom reach.

Standard features:

  • 17′-1″ (5.2 m) max. horizontal boom reach
  • 18′-1″ (5.5 m) max. vertical boom reach
  • Penta Boom™ design
  • CMD™.CTRL radio remote
  • Flip sheave boom tip
  • -10 to 80 degrees boom angle range
  • LMI on control handle

Option:

  • Boom tip lights

Find a Distributor Request a Quote

Model3300e-18
Crane Rating18,000 ft-lb
Crane Weight821 lb
Max Lift Capacity3,300 lb
Max. Horizontal Reach17'-1 "

Series 5 3300-18, 4300-18, 3300e-18 and 4300e-18 Crane Parts & Specifications – 91729048
Download

SERIES 5 OPERATOR’S MANUAL – 91729072
Download

Series 5 Full Line Pocket Brochure
Download

Series 5 Telescopic Crane Quick Reference Guide
Download

Series 5 Telescopic Crane Brochure
Download
