Electric Cranes

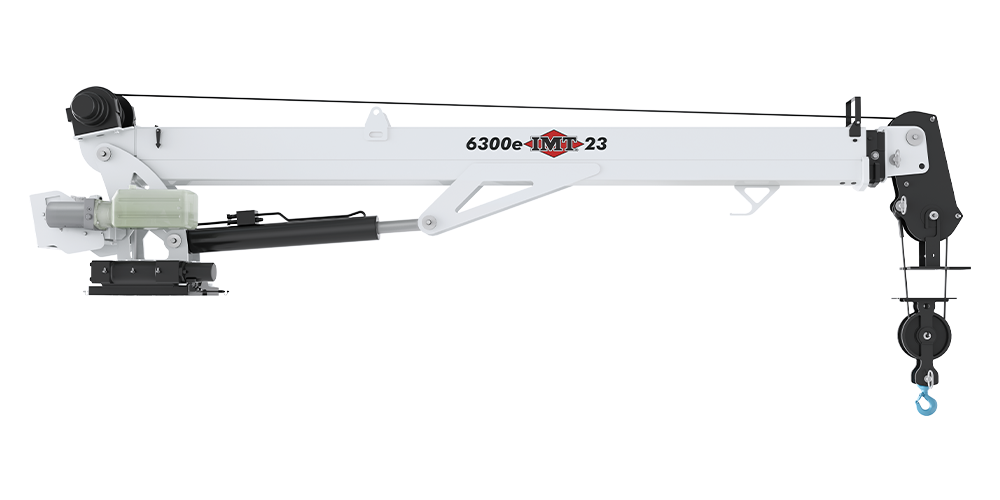

6300e-23
The 6300e-23 has the biggest lifting capacity in our all-new lineup of electric telescoping cranes: up to 6,300 lb (2,857 kg). Its maximum horizontal boom reach of 22′-2″ (6.7 m) and a maximum vertical boom reach of 23-4″ (6.8 m) are also big numbers. Rugged durability and simplified service are among the many benefits of the 6300e-23.
Standard features:
- 22′-2″ (6.7 m) max. horizontal boom reach
- 23′-4″ (6.8 m) max. vertical boom reach
- Penta Boom™ design
- CMD™.CTRL radio remote
- Flip sheave boom tip
- -10 to 80 degrees boom angle range
- LMI on control handle
Option:
- Boom tip lights
